Careflex NBR Insulation Tube

Quick Review

Excellent insultion properties due to low k-value
The closed-cell structure will not absorb or allow the spread of water
Wide working temperature (-40°C to +105°C).
effective insulation due to low k-value and high water vapour diffusion resistance.
Class 0 fire performance as per BS 476 Part 6 & 7, VL 94, flammability Class V-0

More Specification +

Download Product Manual

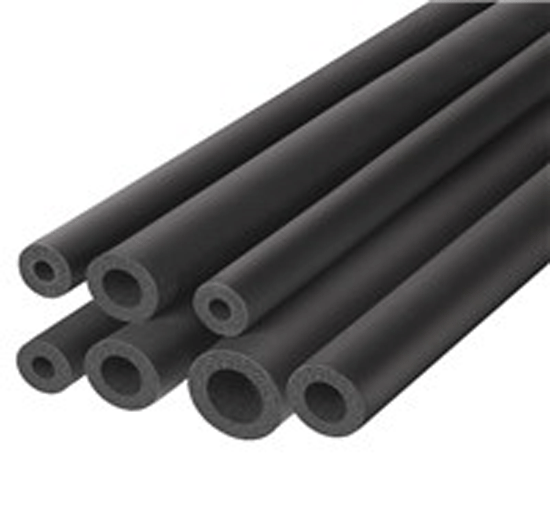

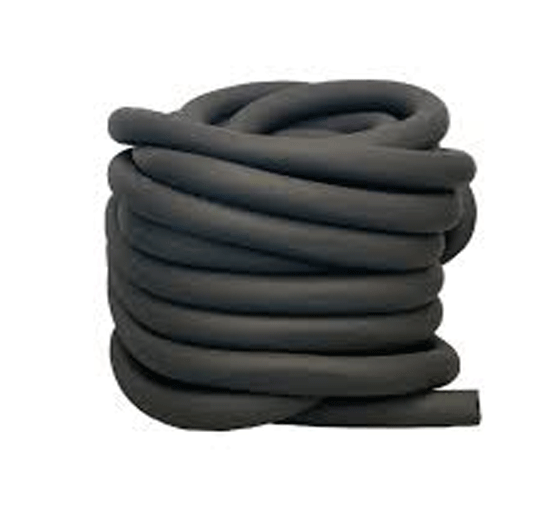

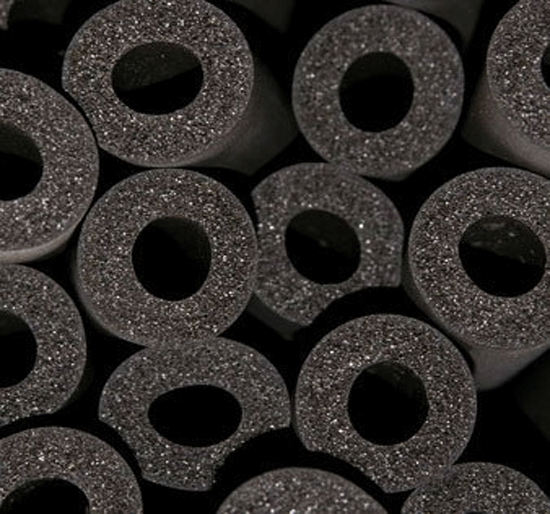

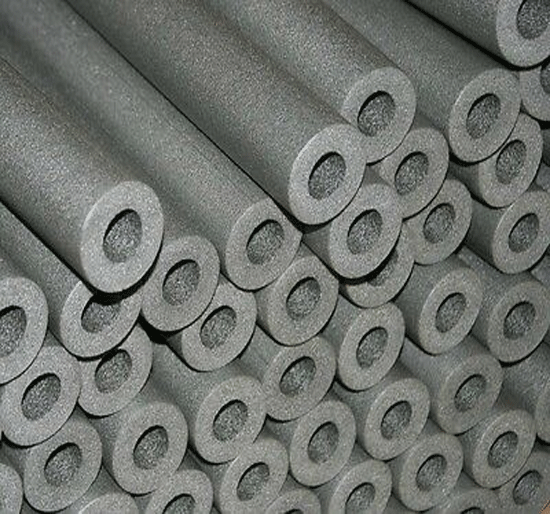

Careflex NBR Insulation Tube is a flexible thermal insulation material made from closed-cell, elastomeric nitrile rubber. Aerocell is produced in preformed sheets and pipe sections. These products meet insulation requirements in diverse fields such as the Automobile, Air Conditioning & Refrigeration industry, Construction industry, Hospital industry, Pharma industry, Hotels and Cold storage industries

Airconditioning Projects: - For Insulating chilled water pipes, chillers, Supply & return Air Ducts and Ancillary Equipments.
Hot & Cold Water Plumbing System:– For insulating hot & cold Pipes used in Commercial, Residential Building & Various Industries.
Solar Water Heating System: – For Insulating Delivery Pipes, Panel and hot water Storage tank etc.
Refrigeration Industries: – For Insulating Pipes Works & ancillary Equipments for Refrigeration.
Process works: – For Insulating Pipes carrying Hot and cold Fluids Including Equipments.
Many Other Areas: – For Energy Conservation in Almost All Areas i.e. Hotel, Hospitals, Dairy & Food Processing ,Cold storages, Refineries & Cold mountainous Regions.

In above application Careflex insulation use in Hot and cold water piping system. For better maintain of Water Temperature.

Excellent insultion properties due to low k-value, that remain unchanged during service life time of hot/cold installation and are unaffected by humidity.
The closed-cell structure will not absorb or allow the spread of water, thus preventing condensation or frost formation on cooling systems, chilled water & refrigerant lines. No additional water vapour barriers are required.
Can be Supplied aluminium foil / Glass Cloth and Adhesive backing for increased performance and quicker installation.
Wide working temperature (-40°C to +105°C).
Thinner gauges can be used to achieve effective insulation due to low k-value and high water vapour diffusion resistance. This also allows the use of material in areas with space limitations.
Class 0 fire performance as per BS 476 Part 6 & 7, VL 94, flammability Class V-0

S.No	Properties	Values	Test Method
1.0	Thermal Insulation Material	Closed Cell Elastomeric Nitrile Rubber foam	–
2.0	Density (Kg/M3)	50 ± 20% (Sheet)	ASTM-D-1056
3.0	Thermal Conductivity (K Value)	0.035 W/m°K at 10°C 0.036 W/m°K at 20°C 0.037 W/m°K at 30°C 0.038 W/m°K at 40°C	ASTM C 518
4.0	Service Temperature	-40 to 105 ◦C
5.0	FIRE & SMOKE CHARACTERISTICS a) Fire Performance acc. To building regulation b) Surface flame spread c) Fire Propagation d) Rate of Burning (Vertical position) e) Practical fire Behaviour	Class 0 Class 1 Total Index (I) < 12 and Sub Index (i1) < 6 Class V-0 Self-Extinguishing , does not drip ,does not spread flames	BS 476 Part 6&7 BS 476 Part 7:1997 BS 476 Part 6:1989 UL 94-1997 ASTM D 635 -06
6.0	Water Vapour diffusion resistance Index	≥7000 (For Plain)	ASTM E-96
7.0	Ozone Depleting substances (CFC/HCFC)	Not Detected No Asbestos	GC-MS
8.0	Resistance to oil & grease	Very Good	–
9.0	Odour	Negligible	–
10.0	Corrosion Risk	pH(Neutral)	–
11.0	Noise Reduction	Up to 35 dB(A)	–
12.0	FM Approval	FM Approved	–
